• 4.3″ 480 X 272 TFT LCD
• Fan-less cooling system
• NEMA4/IP65 compliant front panel
• LED Backlight
• One USB Client Port
• Power Isolator
• COM1 RS485 supports MPI 187.5K

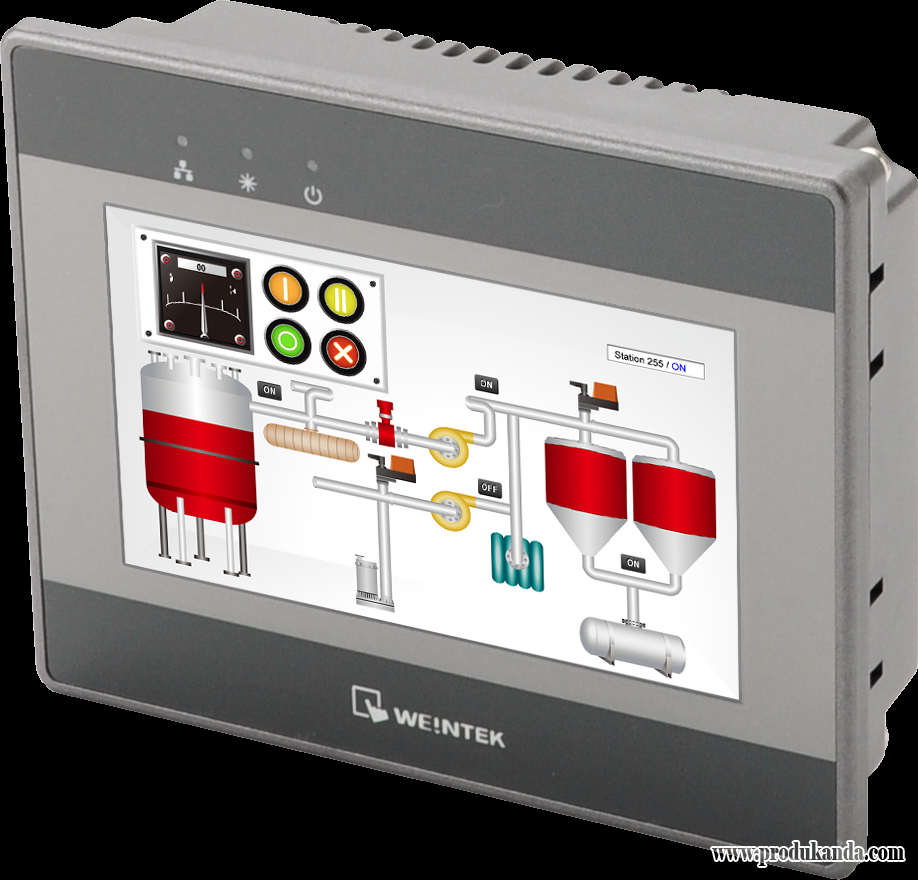

MT6000 series is the new HMI generation of Weintek. With the design concept of meeting customers’ satisfaction while easy-to-Use attribute as before, a MT6000 not only performs as a Human Machine Interface but also plays as a role of data exchange center. MT6000 series is the best choice for your requirement tomorrow.

The MT6050i includes a USB 2.0 high speed device.

• Type: 4-wires, analog resistive
• Resolution: continuous
• Light Transmission: above 80%
• Life: 1 million activation minimum

• Operating temperature: 0° ~ 50°C (32° ~ 122°F)

• Storage temperature: -20° ~ 60°C (-4° ~ 140°F)

• Relative humidity: 10% ~ 90% @ 40°C, non-condensing

• Shock (operation): 10 to 25Hz(X,Y,Z direction 2G 30minutes)

• CE/FCCComplies with EN 55022: 2006,Class A
  EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006
  EN 61000-3-3:1995+A1:2001+A2:2005
• Front panel meets NEMA4 / IP6
