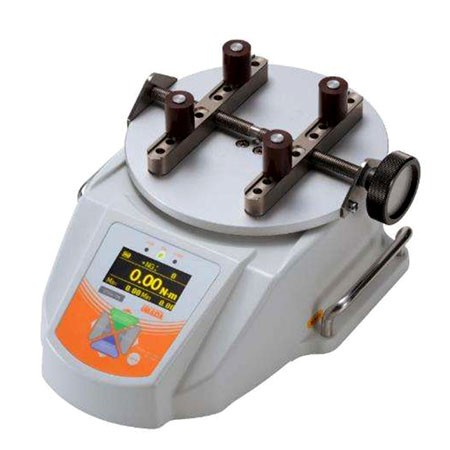

Jual Imada screw cup tester DTXS-10N

Harga :
CALL
Merk :
IMADA
Pengiriman :
3 hari sejak pembayaran
Lokasi :
DKI Jakarta - Jakarta Selatan
Dilihat :
278 Kali
Update Terakhir :
11-02-2016 14:45

Dapatkan Spesifikasi Harga Jual Imada screw cup tester DTXS-10N Produk Terbaik dari PT. CERAH RAIH SEJAHTERA INDUSTRIAL AUTOMATION AND ELECTRICAL COMPONENTS

Detail Produk



Specifications for Screw Cap Torque Tester DTXS/DTXA series

Model DTXA DTXS
Feature Advanced model equipping various functions such as input/output the angles and saving to USB flash drive. Simple standarad model maintaining DTXA performance.
Accuracy ±0.5%F.S.±1digit
Unit of measurement N-m, N-cm, kgf-m,kgf-cm, ozf-in, lbf-in (Unit switching is possible.)(*1)
Display 4-digit
Display update 16 times/ sec
Sampling rate Maximum 2000 data/ sec(*2)
Battery 8 hours (2 hours full charge)(*3)
Safe overload rating Approx. 200%Approx. 200%
Operating Environment Temperature: 0 -40 degree Celsius   Humidity: 20 -80%RH
Function

Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/Internal memory(1000 point data))/ Comparator (OK or NG judgment)/Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/Off timer(Auto power off)/ Dumping/ Time display/ setting lock

1st2nd peak/Angle detection at torque peak value(*4) /Angle zero reset at selected torque(*4)

-
Output

USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm

Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement)

-
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
Weight Approx. 4.5kg (Including Standard table and Standard pins)
Dimensions Please refer to dimensions.
Accessory

AC adapter, Inspection certificate, CD driver (including simple software for data logging), USB cable, Carrying case, L wrench, handles (10N-m range only)

USB flash drive adapter(*6) -

*1 These are the specifications for International model.
Please note that this unit is different from Japanese domestic model and international one.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*3 The battery is more consumed when connected to USB flash drive or a displacement scale.
*4 Angle(displacement) scale is necessary to valid this function.
*5 Not always available for Mitutoyo digimatic products.
*6 USB flash drive is not included


Model list of Screw Cap Torque Tester DTXS/DTXA series

Model Range Display Resolution
DTXA-2N DTXS-2N 2 N-m (200N-cm) 2.000N-m (200.0N-cm) 0.001N-m (0.1N-cm)
DTXA-5N DTXS-5N 5 N-m (500N-cm) 5.000N-m (500.0N-cm) 0.001N-m (0.1N-cm)
DTXA-10N DTXS-10N 10N-m (1000N-cm) 10.00N-m (1000N-cm) 0.01N-m (1N-cm)
