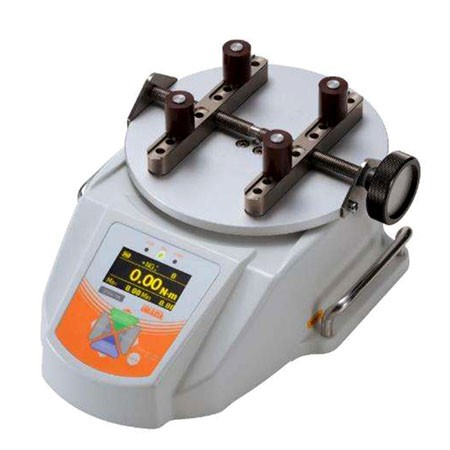

Specifications for Screw Cap Torque Tester DTXS/DTXA series
| Model | DTXA | DTXS |
|---|---|---|
| Feature | Advanced model equipping various functions such as input/output the angles and saving to USB flash drive. | Simple standarad model maintaining DTXA performance. |
| Accuracy | ±0.5％F.S.±1digit | |
| Unit of measurement | N-m, N-cm, kgf-m,kgf-cm, ozf-in, lbf-in (Unit switching is possible.)(*1) | |
| Display | 4-digit | |
| Display update | 16 times/ sec | |
| Sampling rate | Maximum 2000 data/ sec(*2) | |
| Battery | 8 hours (2 hours full charge)(*3) | |
| Safe overload rating | Approx. 200%Approx. 200% | |
| Operating Environment | Temperature: 0 -40 degree Celsius Humidity: 20 -80%RH | |
| Function |
Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/Internal memory(1000 point data)）/ Comparator (OK or NG judgment)/Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/Off timer(Auto power off)/ Dumping/ Time display/ setting lock |
|
|
1st2nd peak/Angle detection at torque peak value(*4) /Angle zero reset at selected torque(*4) |
- | |
| Output |
USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm |
|
|
Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement) |
- | |
| Overload warning | Approx.110%F.S. (Warning message and alarm ) | |
| External connecting switch | SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting | |
| Weight | Approx. 4.5kg (Including Standard table and Standard pins) | |
| Dimensions | Please refer to dimensions. | |
| Accessory |
AC adapter, Inspection certificate, CD driver (including simple software for data logging), USB cable, Carrying case, L wrench, handles (10N-m range only) |
|
| USB flash drive adapter（*6） | － | |
*1 These are the specifications for International model.
Please note that this unit is different from Japanese domestic model and international one.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*3 The battery is more consumed when connected to USB flash drive or a displacement scale.
*4 Angle(displacement) scale is necessary to valid this function.
*5 Not always available for Mitutoyo digimatic products.
*6 USB flash drive is not included
Model list of Screw Cap Torque Tester DTXS/DTXA series
| Model | Range | Display | Resolution | |
|---|---|---|---|---|
| DTXA-2N | DTXS-2N | 2 N-m (200N-cm) | 2.000N-m (200.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-5N | DTXS-5N | 5 N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXA-10N | DTXS-10N | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
