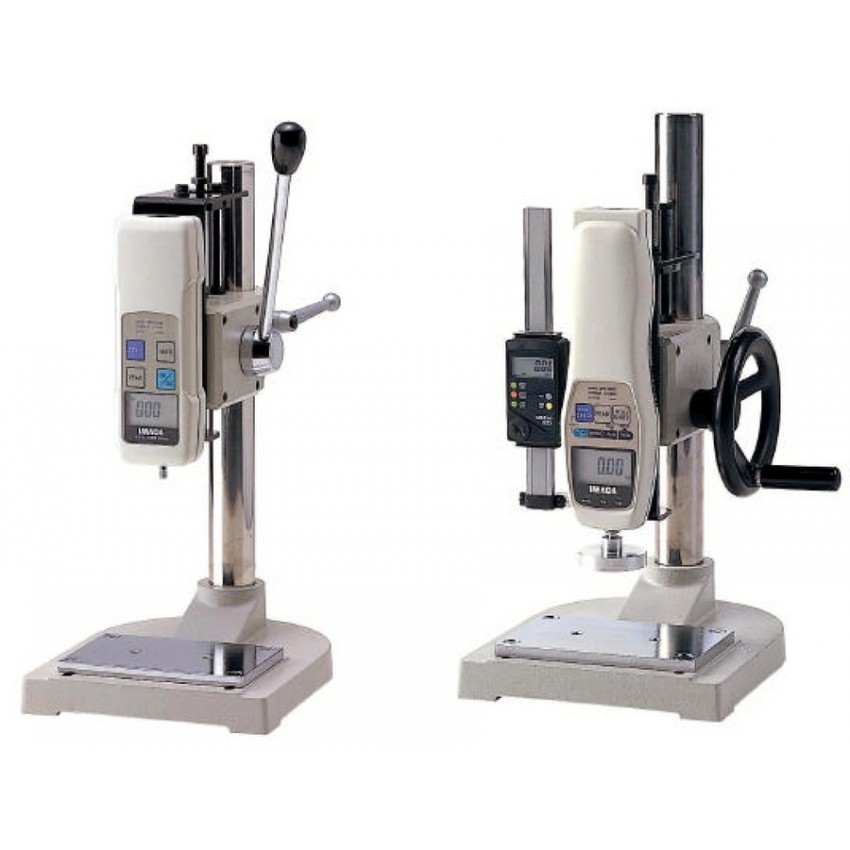

Specifications for SVH-1000N Manual Test Stand
| Model | SVH-1000N |
|---|---|
| Capacity | 1000N (100kgf) |
| Stroke when a Z series force gauge is mounted (*1) | 263mm |
| Travel of a mounted force gauge | 3mm/a complete turn of its handle |
| Function | Mechanical stopper |
| Size | Please refer to dimensions |
| Weight | Approx. 7.7kg Approx. |
| Gauges that can be combined (*2) | Popular and standard model(Load cells and high capacity model cannot be combined.) |
| Accessory | Gauge mounting plate, Screws to mount a gauge, Tools, Instruction manual |
| Option | Length meter, Long stroke, Digital counter |
*1 Stroke is, in other words, max distance from the tip of a Z seires force gauge to a test stand’s table.
*2 Please contact us if you would like to combine other force gauges or load cells with the test stand.
